Scelbi layout

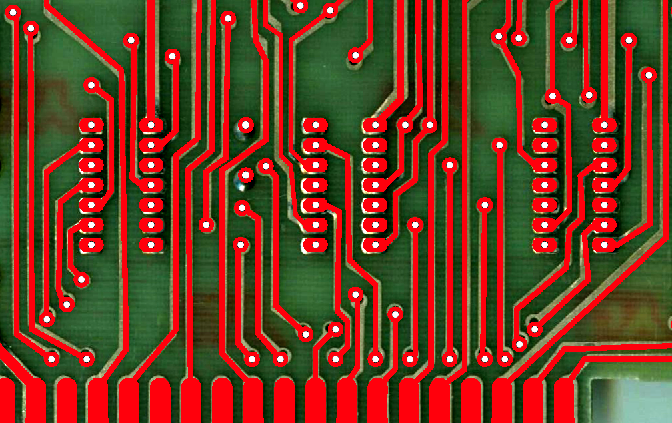

This small section looks half-decent after the first pass, but there is a lot of tedious tweaking to follow. The rest of the board, isn’t even close to this standard.

The CPU board has been a lot of work. The next SCELBI board I’m going to layout will probably be one of the easiest, which is the front panel board.

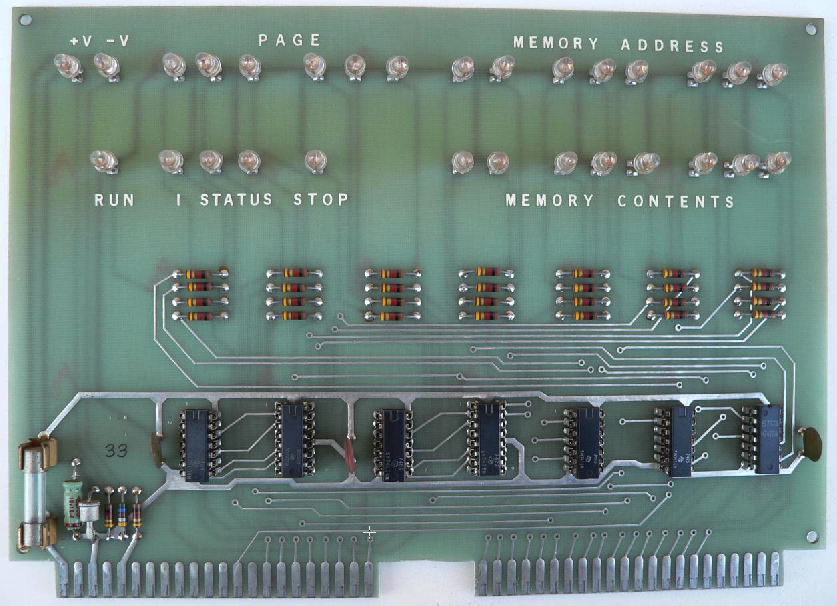

Scelbi front panel board
