SCELBI PROM Board

The PROM Board is built, installed and appears to be running. However, it’s not completely checked out. I need to hack together a simple Apple IIe TTY emulation program that will work with Apple’s old serial card. That card is the only card that I have (outside of my SCELBI stuff) that will run at 110 baud, but it was designed for printing, so I couldn’t find any ready made terminal program for it. The standard PROMs on the SCELBI 8B assume either a keyboard/oscilloscope interface or a TTY interface at 110 baud. Since we don’t have the keyboard/oscilloscope software, I burnt the TTY software into PROMs.

It should take me a day to two to complete the TTY/terminal program hack for the Apple II, at which point, I will probably make short video showing the capabilities of the SCELBI 8B minus the cassette interface.

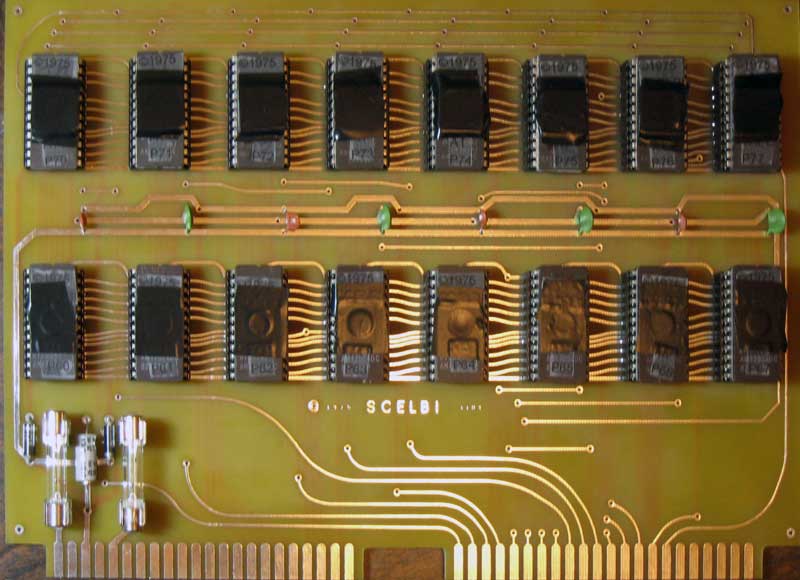

I used black tape to cover the windows on the EPROMs because I’m told that sunlight will erase them after a while.

Meanwhile, you can run the software in my OS/X emulator by downloading the MEA hex file from scelbi.com and jumping to 060-000. In a quick trial, it appeared to work ok for me. Be aware that I don’t currently have the cassette interface emulated, so cassette operations will not work. Cassette emulation is one the things on my to do list.
