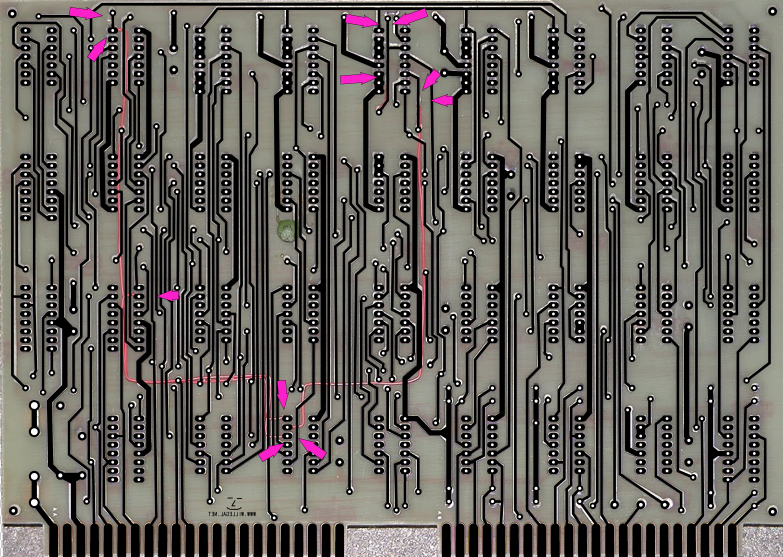

Back of SCELBI O-Scope Digital Board with rework highlighted

This is an image of the current state of the back sidelayout of the long awaited (by a few) digital board overlaid over an image of the actual board. Base image is curtesy of Jack Rubin, the only person I know, that has seen an SCELBI oscilloscope up close and personal in recent memory. This one is in the Computer History Museum’s off site storage facility.

I haven’t worked on any of the lettering, but I’ve gone through multiple passes of the rest of the board. Based on file size, this board is actually more complex than the SCELBI CPU board.

One other thing that I’m going to do is more study of the rework on the only known Oscilloscope digital board. The arrows in the image point to areas where rework was applied. Initial review seems to indicate that the schematics found at scelbi.com match the board after rework was applied. There is also a bit of rework on the front side.

The analog and keyboard layouts are ready to go, though I’ll probably give each of those one more quick design review pass before ordering a batch.
